User interface

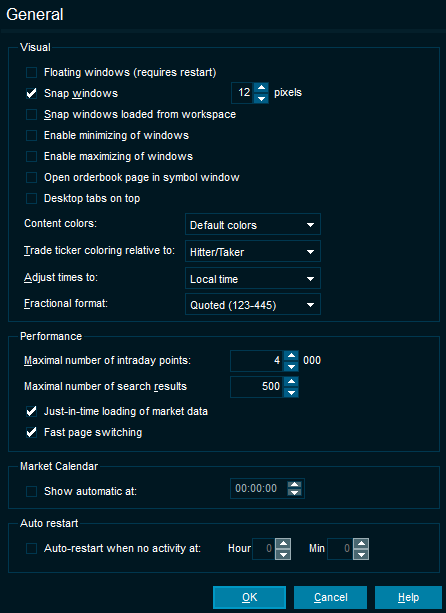

Floating windows

Enables the floating mode when selected.

Snap windows

Every nth pixels: a feature to make it easier to place windows next to each other correctly.

Snap windows loaded from workspace

Same function as above, but it will snap all the windows together when you load a workspace.

Enable minimizing of windows

Adds the "Minimize" icon in all windows.

Open orderbook page in symbol window

Opens the "Orderbook" (OB) tab by default instead of the "Overview" tab when opening an "Overview" window (<CTRL>+<Q>).

Content colors

Allows you to change between color themes.

Trade ticker coloring relative to

Changes the trades list (time and sales) colors for up and down.

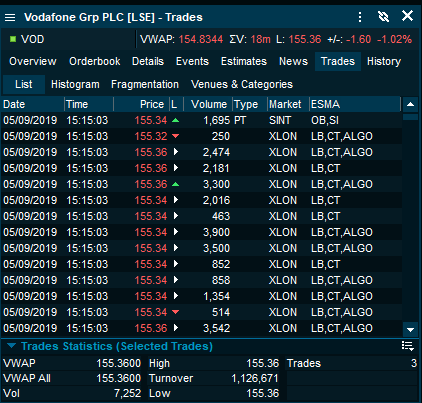

The trades below are colored red because the prices are lower than the previous close in the example below.

Adjust time to

Local / Feed / GMT / Unadjusted

Maximal number of intraday points

The maximum number of prices or last values to be displayed in a chart.

Maximal number of search results

Limits the number of search results.

Just-in-time loading of market data

If you have several desktops open, the terminal will not load market data on them until you view them.

Show automatic at

Set a time at which you want the "Market Calendar" window to open.

Auto-restart when no activity at

If there is no user activity (no mouse or keyboard activity detected in the last 4 minutes), then the Infront Professional Terminal automatically restarts, saving and restoring the current workspace at the time you specified, for example at 20:00 (8 P.M.).

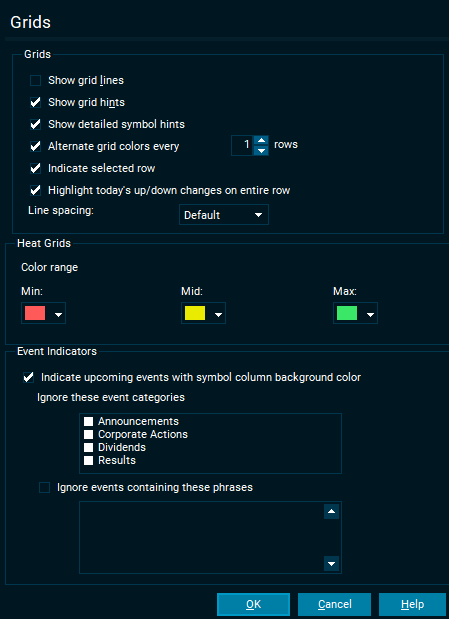

Show grid lines

Displays grid lines in tables to clearly separate rows and columns.

Show grid hints

Shows hints with more information for certain data fields you hover over.

Show detailed symbol hints

Shows an informative hint with a chart for the symbol you hover over.

Alternate grid colors every x rows

Applies different colors to alternate rows.

Indicate selected row

Marks the selected row.

Highlight today's up/down on entire row

Sets the font color for the entire row to the corresponding up/down color and not just the +/- columns which is the default.

Line spacing

Refers to the space taken by each row in a market window, news window, custom lists and orderbooks. You can increase the spacing to improve readability or decrease to save space.

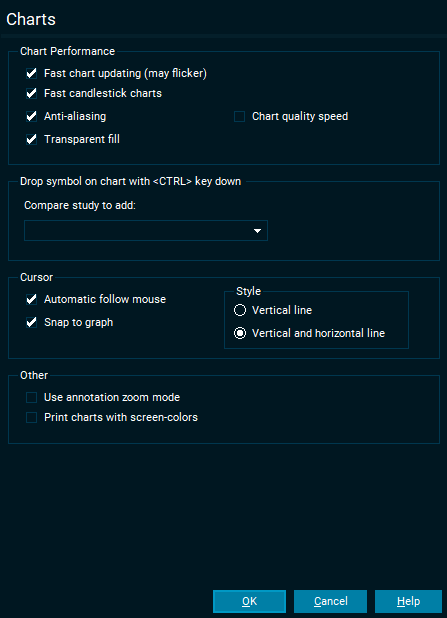

Fast chart updating

When there are too many data points in the chart relative to the space available, some periods in the chart may be drawn on top of neighboring periods. This setting provides a performance improvement when such is the case.

Fast candlestick charts

Adjusts the resolution of the chart (1, 10, 15 minutes intervals) so that all the data points for the time period selected can fit in the chart window. Turn on for a performance improvement.

Anti-aliasing

Smoothing of jagged appearance of charts. Turn off for a performance improvement.

Transparent fill

Area charts are partially transparent. Turn off for a performance improvement.

Drop symbol on chart with <CTRL> key down

This setting controls what type of compare chart you get if you hold down the <CTRL> key when dragging and dropping a symbol into the chart.

Automatic follow mouse

When moving your mouse across the chart, a visual grid cursor will update the date/time and price on the x and y axis.

Snap to graph

Combined with "automatic follow mouse", switch this setting off to only see a visual grid cursor for date/time on the x axis. Example below with this feature switched off.

Style

Choose between a "vertical and horizontal" cursor (crosshair) or only a "vertical" cursor.

Use annotation zoom

If switched on, it is no longer necessary to hold down <CTRL> to draw annotations in charts.

Print charts with screen-colors

By default, the charts will optimize ink usage by printing with a white background. Switch this setting off if you wish to print with the same colors as the screen is showing.

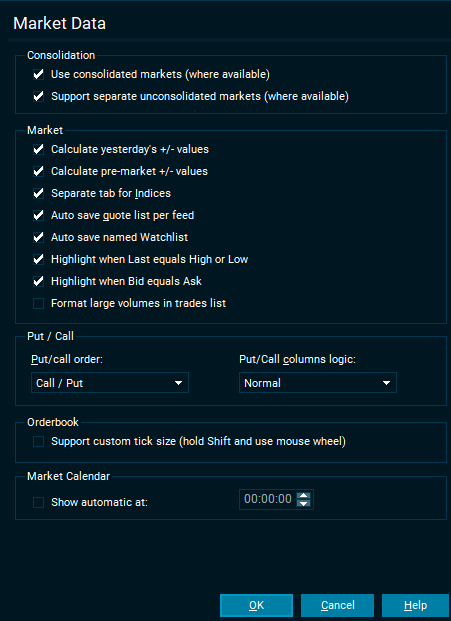

Use consolidated markets (where available)

Automatically switches on consolidated data for users with access to alternative marketplaces such as MTFs.

Support separate unconsolidated markets (where available)

Instead of consolidating market data to one market place, switching this option on will give access to the unconsolidated feeds separately.

Calculate yesterday's +/- values

Show yesterday's +/- change while the market is closed.

Calculate pre-market +/- values

When pre-trade Bid and Ask values match, this option calculates change (+/- and +/-%) values in the pre-market period when there were no trades (and no last price).

This allows you to see where the market will open for each symbol that has pre-market orderbooks.

Separate tab for Indices in Market windows

Move all indices from the "All Quotes" tab to a separate tab called "Indices".

Auto-save quote list per feed

Automatically save the list you build up on the "List" tab in a market window.

Auto-save named Custom Lists

If you have opened a previously saved custom list, any changes you make to it will automatically be saved.

Highlight when Last equals High or Low

The last column in a market window or custom list will the change background color if the last price is the same as today's high or low.

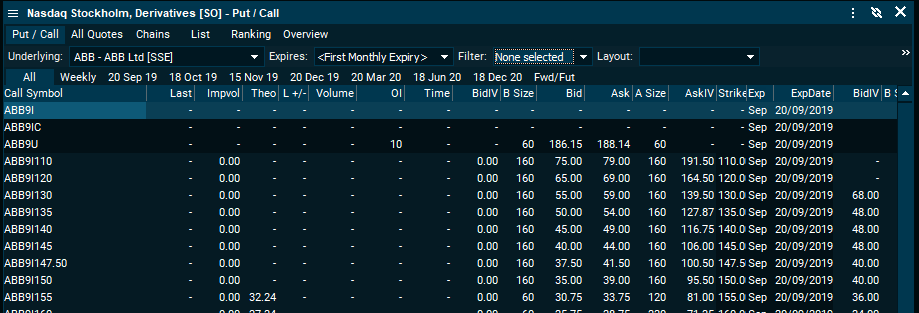

Enable multiple selection of underlyings

Allows the user to select more than one underlying instrument in the put/call tab for derivatives markets.

Put/call order

Determine whether derivatives markets should be shown with calls on the left and puts on the right, or opposite.

Put/Call columns logic

Normal mode shows default columns for derivatives market. "Include subtype" will add the subtype column.

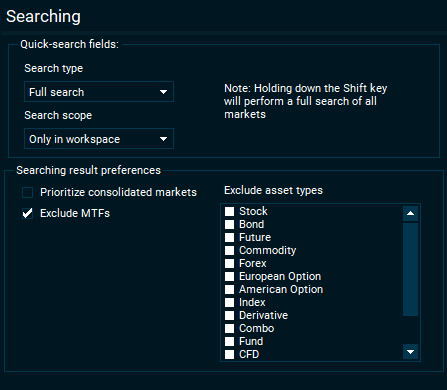

Search type

Select between "Full search" (ticker and instrument name) and "Ticker" when using quick search inside market windows, custom lists, charts, orderbooks and more.

Search scope

Select whether the quick-search should search in:

• All markets you have access to (slowest)

• The same market (as the instrument you are looking at, fast)

• Only in workspace (Infront Professional Terminal checks what is currently open in your workspace and searches through the markets, fast)

Prioritize consolidated markets

Some users have static consolidated markets from the server. When this is available, the search results can be prioritized to display results from these markets first.

Exclude MTFs

Select this checkbox to avoid seeing search results from MTFs such as BATS and Chi-X.

Exclude asset types

Removing asset types you never search for can help display results most relevant to you.

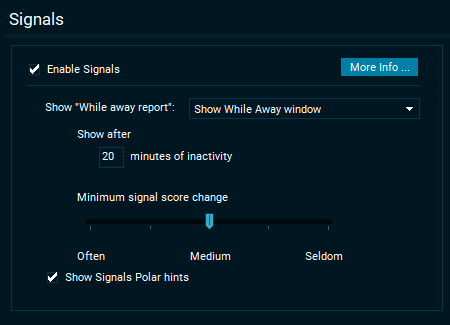

Enable Signals

For more information, see

.

Show "While away report"

Infront Professional Terminal may detect interesting movements and events that occurred while you were away from your computer.

Show Signals Polar hints

When holding your mouse over a given signal, the terminal will try to display a polar chart.
